An introduction to memory management
and
Linux memory management today and tomorrow

Too little, too slow

• Иерархия памяти
  • some numbers
  • working set
  • Кеш
    • mapping, associativity, coherency
  • Основная память
    • virtual memory, virtual -> physical mapping
    • page faults, page replacement
  • Disk
    • performance characteristics
  • HSM

• Linux VM 2.2, 2.4 , 2.5
  • how it (doesn't) work(s)
  • how to fix things
    • emergency fixes for 2.4
    • stuff we want/need in 2.5

Иерархия памяти

Иерархия памяти : основы

• Иерархия существует потому , что
  • быстрая память дорогого стоит и ее не может быть много
  • медленная память дешева и может быть большой

• Латентность
  • как долго нужно ждать ?
  • (в момент ожидания невозможно что-либо делать еще)

• Throughput
  • how many MB / second?
  • not important when you're waiting

• Суммарное время = latency + (количество данных / throughput)

Memory hierarchy: кому что доступно?

• CPU core
  • доступно программисту
  • оптимизация остается в основном за кадром
• L1, L2 , L3 кеш
  • управляется самим железом
  • скрыто
• RAM
  • управляется операционной системой
  • управление RAM невидимо для приложений
• Disk
  • управляется OS
  • программы работают с файловой системой

Memory hierarchy: статистика

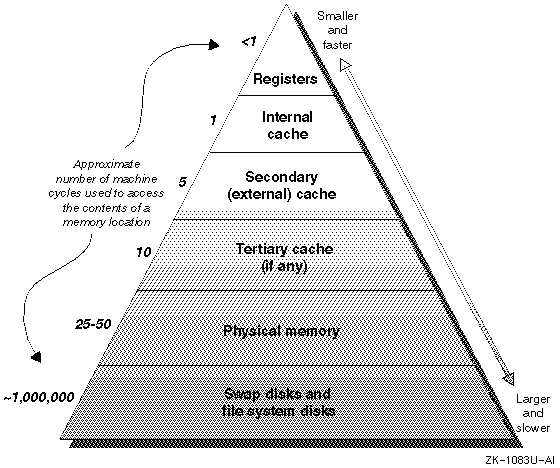

Memory hierarchy: working set

• Как увеличить производительность ?
  • Локализация ссылок
    • most accesses in a small part of memory
    • most data rarely accessed
    • just accessed data often used again soon
  • predictable access patterns
    • pipelining
    • readahead

Cache

• L1 cache
  • closest to the CPU
  • fast
  • simple
  • small (16 - 128kB)
  • separate instruction and data caches

• L2 cache
  • between L1 cache and memory
  • larger then L1 cache (128kB - 8MB)
  • more complicated
  • slower
  • unified cache

Cache: как это работает

• Cache strategies
  • cache line
    • data
    • metadata
  • mapping
    • direct mapped
    • N-way set associative
    • fully associative
  • replacement
    • (direct mapped)
    • LRU
    • semi-random
  • write strategy
    • write through
    • write back
    • write around

Cache: грязная память

• When the CPU writes out a value
  • we cannot just forget about it
  • it has to be written to (slow) memory

• Who writes back
  • write through
    • CPU writes back the data
  • write back
    • cache writes back the data
    • cpu can do something else at the same time

Cache: coherency

• Strategies
  • selectively flush the cache
  • use uncached memory for certain things
  • don't allow shared data
  • MESI (modified, exclusive, shared, invalid)

Cache: програмная оптимизация

• p->counter == 0 для выполняемых процессов
• p->counter для всех процессов
• для большинства процессов, p->counter не меняется

recalculate:
 	for_each_task(p)
 		p->counter = (p->counter >> 1) + p->priority;


Cache: программная оптимизация

• OLD

recalculate:
 	for_each_task(p)
 		p->counter = (p->counter >> 1) + p->priority;


• NEW

recalculate:
 	for_each_task(p) {
 		if (p->counter != (p->counter >> 1) + p->priority)
 			p->counter = (p->counter >> 1) + p->priority;
 	}


RAM

• Main memory
  • slowest volatile memory
  • fairly big (32MB - 8GB)
  • management is not done by hardware, but by the OS
  • complex memory management is worth it
    • ram is 100 x slower than cpu core
    • ram is 100.000 x faster than disk
  • allocation granularity in pages (4 to 64kB)
    • (128 x bigger than a cache line)

RAM: виртуальная память

• Виртуальная память
  • может использовать больше адресного пространства , чем доступно в памяти
  • может выполнять больше программ , чем помещается в память
  • каждый процесс имеет свое собственное виртуальное пространство
    • процессы не имеют доступа к памяти других процессов
    • процессам не нужно знать о других процессах
    • стартовая страница у каждого процесса разная
  • все страницы памяти для процесса не обязательно должны быть выделены
  • page faults
    • mapping
    • page replacement
  • virtual -> physical mapping
    • MMU
    • page tables
    • TLB

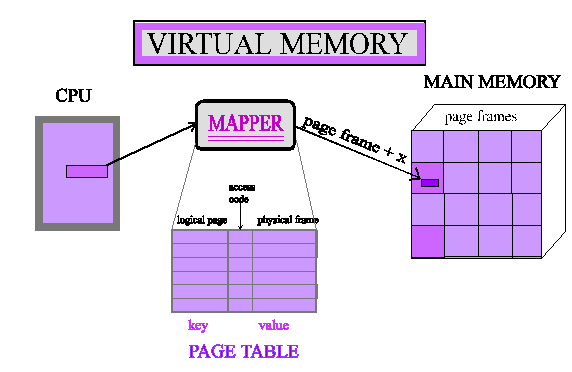

RAM: virtual memory

RAM: virt -> phys mapping

• MMU
  • Memory Management Unit
  • does the translation
• TLB
  • Translation Lookaside Buffer
  • cache for the MMU translations
• Page tables
  • index of which process (virtual) address is where in physical memory
  • often multi-level page tables
• If an address is not in the TLB
  • hardware lookup by MMU (x86, m68k)
  • software lookup by OS (MIPS, Alpha?, PPC)

RAM: page faults

• Если страницы нет в памяти
  • процессор выдает PAGE FAULT
  • OS получает ошибку и выполняет ее обработку
    • берет новую свободную страницу
    • читает ее с диска , если нужно
    • пишет в page table
    • разрешает программе выполняться дальше с прерванного места
  • процесс продолжается , как будто ничего и не было
    • прозрачность
    • тормоза
• если в системе кончилась память
  • выделяется новая
  • даются ей права чтение-запись

RAM: page replacement

• Если памяти мало
  • Perfect page replacement
    • выбираем страницу , которая долго не будет используется
    • при таком подходе число page faults минимально
    • оптимально по скорости
    • надежно
  • Least Recently Used (LRU)
    • выбираем страницу , которая долго не использовалась
    • оптимально
    • плохо в некоторых ситуациях
      • streaming IO
      • working set just over memory size
    • высокий overhead
  • Least Frequently Used (LRU)
    • выбирается страница , которая используется наименее часто
    • медленно
      • eg. multi-pass compiler
    • high overhead
  • LRU approximations
    • evict any page which hasn't been used for a long time
    • simple
    • low overhead
    • good enough

RAM: LRU approximations

• NRU
  • not recently used
  • very rough LRU approximation
  • idea: don't evict pages which were just used
• NFU
  • not frequently used
  • keep pages which have been used often in memory
  • idea: don't evict pages which are used over and over again
• Page aging
  • combines good points of NRU and NFU
  • relatively low overhead
  • used in Linux 2.0, FreeBSD and Linux 2.4
  • when a page is used, increase page->age
    • page->age += MAGIC_NUMBER
  • when a page is not used, decrease page->age
    • page->age -= ANOTHER_MAGIC_NUMBER
    • page->age = page->age / 2
  • remove page from memory when page->age reaches 0

RAM: other replacement tricks

• Drop behind
  • with streaming IO, data is usually only used once
  • deactivate the data behind the readahead window
  • page is still in the inactive list if needed again soon
• Idle swapout
  • for swapout, first look at long sleeping processes
  • less chance of evicting a used page from a running process
  • we swap out idle processes before eating too much from the cache
  • less overhead, you don't find recently accessed pages in a process that has been sleeping for 10 minutes

Disk

• Hard disk
  • persistant storage
  • stored on disk
    • executable code
    • system configuration
    • program and user data
    • metadata (an index of what is where)
    • swapped out memory
  • big and cheap (2GB - 100GB)
  • 100.000 x slower than memory
  • "interesting" performance characteristics
    • high throughput (fast)
    • extremely long seek times (slow)
    • RAID and/or smart controllers make latency unpredictable

Disk: performance characteristics

• disk consists of
  • spinning metal plates with oxide surface
  • disk arms with read/write head
• latency
  • seek time
  • rotational delay
  • queue overhead
  • 5 - 15 milliseconds (100.000 x slower than RAM)
• throughput
  • density
  • rotational speed
  • higher near edge of disk, less near the center
  • 5 - 40 MB / second (10 x slower than RAM)

Disk: performance optimisations

• readahead
  • we read in the data before it is needed
  • the program doesn't have to wait
  • we waste some memory, possibly evicting useful data
    • adaptive readahead
• reduce the amount of disk seeks
  • smart filesystem layout
  • metadata caching
  • I/O clustering
    • read large blocks of data at once
    • less seek time per MB transfered
• don't access the disk
  • caching of data
  • smart page replacement algorithm (RAM)
  • read the data before it is needed
• RAID

Disk: RAID

• Redundant Array of Inexpensive Disks (RAID)
  • data is spread out over multiple disks, often with parity
    • store the data on (for example) 4 disks
    • use an extra disk to store "extra" data
  • bigger than a single disk
  • more reliable
    • if a disk fails, we recalculate the "missing" data from the data we still have and the data on the extra disk
  • faster
    • you have multiple disks to read the data from
  • cheaper than a Single Large Expensive Disk
  • continues to work if a single disk fails
    • people can continue their work
    • no waiting for (old) data on backup tapes

HSM: beyond disk

• Hierarchical Storage Management (HSM)
  • data silos (tapes + tape robots)
  • disks to cache the data from tape
  • used for very large amounts of data
    • > 1 TB of data, up to multiple PB (1Mi GB)
    • backups take too long
      • after a 4-day backup, you have backed up old data
      • waiting 4 days to restore the data is not an option
    • cheaper and more reliable than disk

• HSM is used for
  • meteorological data
  • astronomical observations
  • particle accellerator measurements
  • big (multimedia) data banks

Too little, too slow

• быстрая память быстра , но мала
• память вообще либо мала , либо медленна
• локализация ссылок улучшает производительность
• программы могут быть оптимизированы за счет локализации
• программисты могут увеличивать производительность
• железо управляет как L1 , так и L2 cache
• OS управляет RAM и disk
• с помощью RAM можно минимизировать обращение к диску
• у диска быстрый throughput и медленный latency
• smart filesystem layout, I/O clustering and RAID maximise disk performance

Linux Memory Management

• Linux VMM
  • different types of physical pages (zones)
    • ZONE_DMA, ZONE_NORMAL, ZONE_HIGHMEM
  • virtual page use
    • page and swap cache
    • shared memory
    • buffer memory
  • 2.2 VM
    • do_try_to_free_pages
    • strong and weak points of 2.2 VM
  • needed changes in 2.4 VM
    • balanced page aging, multiqueue VM
    • optimised page flushing
  • plans for 2.5 / 2.6 VM
  • out of memory handling / QoS issues

Linux VM: physical zones

• ZONE_DMA
  • memory from 0 to 16MB
  • can be used for ISA DMA transfers
  • can be used for kernel data structures
  • can be used for user memory
• ZONE_NORMAL
  • memory from 16 to 900 MB
  • can be used for kernel data structures
  • can be used for user memory
• ZONE_HIGHMEM
  • memory > 900 MB
  • can be used for user memory
  • highmem pages need to be copied to/from normal memory for \

Linux VM: virtual page use

• mapped pages
  • mapped in process page tables
  • shrunk by swap_out()
  • placed in other cache
• pagecache & swapcache
  • pages here can be mapped too
  • caches parts of files and/or swap space
  • shrunk by shrink_mmap()
  • in 2.2, cannot hold dirty pages
• shared memory
  • SYSV or POSIX shared memory segments
  • processes can and unmap map these segments
  • swapped out with shm_swap()
• buffer cache
  • cached disk data that doesn't fit in the page cache
  • buffer heads map the data to a block on disk
  • dirty file cache data (in 2.2 only)
  • shrunk by shrink_mmap()
• kernel memory
  • cannot be swapped out
  • used for
    • task struct / kernel stack
    • page tables
    • slab cache

Linux VM 2.2: try_to_free_pages

• do_try_to_free_pages()
  • first, free unused kernel memory
  • in a loop, until enough pages are freed
    • shrink_mmap
    • shm_swap
    • swap_out
  • one last shrink_mmap, if needed

• swap_out()
  • walks the virtual memory of all processes
  • if it finds a page not accessed since last scan
    • swap out the page and exit

• shrink_mmap()
  • walks the page and buffer cache pages
  • if it finds a page not accessed since last scan
    • if the page is dirty, queue it for IO
    • if the page is clean, free it and exit

Linux 2.2 VM: strong / weak points

• strong points
  • simple
  • relatively low overhead for most situations
  • works well most of the time

• weak points
  • doesn't take relative activity of different caches into account
    • eg. unused shared memory segments and heavily used page cache
  • simple NRU replacement makes us copy too many pages to/from highmem
  • accessed clean pages sometimes get evicted before old dirty pages
  • NRU replacement breaks when all pages were accessed (because \

• doesn't work well under wildly varying VM load
• easily breaks down under very heavy VM load

Linux VM: changes in 2.4

• balanced page aging
  • page aging
  • multiqueue VM
• smarter page flushing
  • page_launder()
• make VM more robust under heavy loads
• drop-behind for streaming IO and file writes
  • not (yet) supports mmap and friends

• page->mapping->flush() callback
  • journaling, phase tree or soft update filesystems
  • page flushing for bufferless (network?) filesystems
• pinned buffer reservations
  • for journaling, etc. filesystems
• write throttling for everything
  • currently only works for generic_file_write and friends

Linux VM: 2.4 / 2.5 page aging

• balanced page aging
  • mapping/unmapping pages takes overhead, so we want few inactive pages
  • however, more inactive pages results in better page replacement
  • the solution is a dynamic inactive target
• separate page aging and page flushing
  • page aging is done the same on dirty and clean pages
  • the "lazy flush" optimisation is only done for old pages
• page pages from all caches on the same queue
  • physical page based page aging
  • requires physical -> virtual reverse mappings
  • fixes balancing issues
  • big change, to be done for 2.5
• do light background scanning
  • no half-hour old referenced bits lying around
  • better replacement with load spike after quiet period

Linux VM: multiqueue VM

• multiple queues used to balance page aging and flushing
• active
  • pages are in active use, page->age > 0 or mapped
  • page aging happens on these pages
• inactive_dirty
  • pages not in active use, page->age == 0
  • pages that might be(come) reclaimable
    • dirty pages
    • buffer pages
    • pages with extra reference count
  • cleaned in page_launder(), moved to inactive_clean list
• inactive_clean
  • pages not in active use, page->age == 0
  • pages which are certainly immediately reclaimable
  • can be reclaimed directly by __alloc_pages
  • keep data in memory as long as possible

Linux VM: balancing aging and flushing

• static free memory target
  • free + inactive_clean > freepages.high
  • enforced by kswapd
  • if free memory is too low, allocations will pause
• dynamic inactive memory target
  • free + inactive_clean + inactive_dirty > freepages.high + inactive_target
  • enforced by kswapd
• page flush target
  • free + inactive_clean > inactive_dirty
  • enforced by bdflush / kflushd
• memory_pressure / inactive_target
  • one-minute floating average of page replacements
  • in __alloc_pages and page_reclaim, memory_pressure++
  • in __free_pages_ok, memory_pressure--
  • memory_pressure is decayed every second
  • inactive_target is one second worth of memory pressure

• do_try_to_free_pages()
  • work towards free target
    • kmem_cache_reap()
    • page_launder()
  • work towards free and inactive target
    • refill_inactive()

• refill_inactive()
  • basically the old try_to_free_pages() with page aging
    • has the same balancing issues as 2.2
    • shrink_mmap() is gone (wooohooo)
    • in 2.5, replace with physical page based aging
  • moves pages to the inactive list instead of freeing them

Linux 2.4 VM: page_launder

• moves clean, unmapped pages from inactive_dirty to inactive_clean list
• flushes dirty pages to disk, but only if needed

• pass 1
  • move accessed or mapped pages back to the active list
  • move clean, unmapped pages to inactive_clean list
  • free clean buffercache pages
• if there is enough free memory after pass 1, stop
• pass 2 (launder_loop, clean dirty pages)
  • start async IO on up to MAX_LAUNDER pages
  • start synchronous IO on a few pages, but only if we failed to free any page in pass 1

• this function is so complex because
  • we do not want to start disk IO if it isn't needed
  • we do not want to wait for disk IO
  • we do not want to start too much disk IO at once

Linux VM: flush callback & pinned pages

• page->mapping->flush(page)
  • give filesystems more freedom for own optimisations
    • IO clustering
    • allocate on flush / lazy allocate
  • advisory call, filesystem can write something else instead
    • write ordering of journaling or phase tree fs
    • not flush the page now because of online fs resizing, etc
  • pages no longer depend on the buffer head
    • allocate on flush
    • can use other data structures (kiobuf)
  • abstract away page flushing from VM subsystem

• pinned reservations for journaling filesystems
  • sometimes need extra pages to finish a transaction
    • deadlock potential
  • having too many pinned pages screws up page replacement
    • write ordering constraints

Linux VM: plans for 2.5

• physical page based aging & equal aging of all pages
• improved IO clustering and readahead
• anti-thrashing measures (process suspension?)
• pagetable sharing
• (maybe) page table swapping
• large page sizes
• NUMA scalability

Linux VM: plans for 2.5

• physical page based aging
  • virtual scanning based page aging has some "artifacts"
  • aging all pages equally fixes the balancing issues
  • requires physical -> virtual reverse mappings

• improved IO clustering and readahead
  • better IO clustering reduces disk seeks a lot
  • explicit IO clustering for swapout
  • readahead and read clustering on the VMA level
  • drop-behind for streaming mmap() and swap

• anti-thrashing measures
  • the system only supports up to some limit of VM load
  • if more processes are running, the system slows to a halt
  • solution
    • temporarily suspend one or more of the processes
    • the VM subsystem can keep up with the remaining load
    • suspend / resume the processes in turn, for fairness

Linux VM: more plans for 2.5

• pagetable handling improvements
  • at the moment, page tables are
    • unswappable
    • unfreeable (until process exit)
    • up to 3MB per process
  • we want to reduce this overhead
    • (COW) page table sharing
    • page table destruction / swapping

• large page sizes
  • some architectures have "variable" page sizes
  • Linux needs to have some code changed to support this right

• NUMA (and SMP) scalability
  • NOT about finer grained locks, that won't work
  • move currently global variables and structs to the per-node struct pgdat
  • look into using more (per-cpu?) local structures
  • look into making code paths lock-less

Linux VM: OOM / QoS

• when the system goes OOM (out of memory), kill a process
  • don't kill system-critical programs
  • lose the minimal amount of work
  • recover the maximum amount of memory
  • never kill programs with direct hardware access

• Linux overcommits memory, processes can reserve more memory than what's available
  • this is very efficient
  • but sometimes goes wrong
  • it might be good to give people a choice about this ;)

• Quality of Service issues
  • fairness between users and/or groups of users
    • RSS guarantees
    • VM quotas
  • different users with different priorities
  • in case of overcommit, take user VM usage into account for OOM killing

Acknowledgements

• DEC, from who I stole the "pyramid" picture
• CMU, where I got the other picture
• David Olivieri, who helped improve this slides
• Linus Torvalds, for giving us lots of work to do

• Linux-MM
  • http://www.linux.eu.org/Linux-MM/
• VM Tutorial
  • http://cne.gmu.edu/modules/VM/
• Design Elements of the FreeBSD VM System
  • http://www.daemonnews.org/200001/freebsd_vm.html
• My home page, where you can download these slides
  • http://www.surriel.com/

Оставьте свой комментарий !
Ваше имя: Комментарий: Оба поля являются обязательными  Автор   Комментарий к данной статье
