Translation Lookaside Buffers (TLBs)

• With two-level paging, one memory reference could require three memory accesses !



• In order to reduce the number of times this occurs, a fast lookup table called a TLB is added as a hardware cache in the microprocessor.

Translation Lookaside Buffers (TLBs)

• Number of TLB entries varies from 8 to 2048.
• Typically around 64.



• When a TLB miss occurs:
• A trap occurs and an OS routine handles the fault. The instruction is then restarted.
• The OS routine copies one (or more) page frame(s) from the page table in memory to one (or more) of the TLB entries.



• Therefore, if page is referenced again soon, a TLB hit occurs eliminating the memory reference for the page frame.

Basic Architecture

• Outline:
• Internal programmer visible architecture, e.g. registers



• Real Mode Addressing:
• Real Mode Memory: 00000H-FFFFFH (the first 1MB of main memory).



• Protected Mode Addressing:
• All of memory (applicable to 80286 and later processors).
• Programmer in visible registers to control and operate the protected memory system.



• 80x86 Memory Paging.

Programmer Visible Architecture

• Programmer visible registers:

Programmer Visible Architecture

• General Purpose Registers: The main functions are listed.
• EAX: Accumulator : Referenced as EAX, AX, AL or AH.
• Used for mult, div, etc.
• Used to hold an offset.
• EBX: Base Index :
• Used to hold the offset of a data pointer.
• ECX: Count :
• Used to hold the count for some instructions, REP and LOOP.
• Used to hold the offset of a data pointer.
• EDX: Data :
• Used to hold a portion of the result for mult, of the operand for div.
• Used to hold the offset of a data pointer.
• EBP: Base Pointer :
• Holds the base pointer for memory data transfers.
• EDI: Destination Index :
• Holds the base destination pointer for string instructions.
• ESI: Source Index :
• Holds the base source pointer for string instructions.

Programmer Visible Architecture

• Special Purpose Registers:
• EIP: Instruction Pointer :
• Points to the next instruction in a code segment.
• 16-bits (IP) in real mode and 32-bits in protected mode.
• ESP: Stack Pointer :
• Used by the stack, call and return instructions.
• EFLAGS :
• Store the state of various conditions in the microprocessor.

Programmer Visible Architecture

• Special Purpose Registers:
• EFLAGS Register:

• The rightmost 5 flag bits and overflow change after many of the arithmetic and logic instructions execute. Data transfer and control instructions never change the flags.
• C (Carry) :
• Holds the carry out after addition or the borrow after subtraction.
• Also indicates error conditions.
• P (Parity) :
• 0 for odd number of bits and 1 for even.
• Obsolete feature of the 80x86.
• A (Auxiliary Carry) :
• Highly specialized flag used by DAA and DAS instructions after BCD addition or subtraction.

Programmer Visible Architecture

• Special Purpose Registers:
• EFLAGS (cont).
• Z (Zero) :
• 1 if the result of an arithmetic or logic instruction is 0.
• S (Sign) :
• 1 if the sign of the result of an arith. or logic instruction is negative.
• T (Trap) :
• Trap enable. The microprocessor interrupts the flow of instructions on conditions indicated by the debug and control registers.
• I (Interrupt) :
• Controls the operation of the INTR (Interrupt request) pin. If 1, interrupts are enabled. Set by STI and CLI instructions.
• D (Direction) :
• Selects with increment or decrement mode for the DI and/or SI registers during string instructions. If 1, registers are automatically decremented. Set by STD and CLD instructions.
• O (Overflow) :
• Set for addition and subtraction instructions.

Programmer Visible Architecture

• Special Purpose Registers:
• EFLAGS (cont).



• 80286 and up:
• IOPL (I/O privilege level) :
• It holds the privilege level at which your code must be running in order to execute any I/O-related instructions. 00 is the highest.
• NT (Nested Task) :
• Set when one system task has invoked another through a CALL instruction in protected mode.



• 80386 and up:
• RF (Resume) :
• Used with debugging to selectively mask some exceptions.
• VM (Virtual Mode) :
• When 0, the CPU can operate in Protected mode, 286 Emulation mode or Real mode. When set, the CPU is converted to a high speed 8086. This bit has enormous impact.

Programmer Visible Architecture

• Special Purpose Registers:
• EFLAGS (cont).



• 80486SX and up:
• AC (Alignment Check) :
• Specialized instruction for the 80486SX.



• Pentium and up:
• VIF (Virtual Interrupt Flag) :
• Copy of the interrupt flag bit.
• VIP (Virtual Interrupt Pending) :
• Provides information about a virtual mode interrupt.
• ID (Identification) :
• Supports the CPUID instruction, which provides version number and manufacturer information about the microprocessor.

Programmer Visible Architecture

• Segment Registers:
• CS (Code Segment) :
• In real mode, this specifies the start of a 64KB memory segment.
• In protected mode, it selects a descriptor.
• The code segment is limited to 64KB in the 8086-80286 and 4 GB in the 386 and above.
• DS (Data Segment) :
• Similar to the CS except this segment holds data.
• ES (Extra Segment) :
• Data segment used by some string instructions to hold destination data.
• SS (Stack Segment) :
• Similar to the CS except this segment holds the stack.
• ESP and EBP hold offsets into this segment.
• FS and GS : 80386 and up.
• Allows two additional memory segments to be defined.

Real Mode Memory Addressing

• Only mode available to the 8086 and 8088.
• Allow the processor to address only the first 1MB of memory.
• DOS requires real mode.



• Segments and Offsets :
• Effective address = Segment address + an offset.

Real Mode Memory Addressing

• Segments and Offsets :
• Syntax is usually given as seg_addr:offset , e.g. 1000:F000 in the previous example to specify 1F000H .



• Implicit combinations of segment registers and offsets are defined for memory references.



• For example, the code segment (CS) is always used with the instruction pointer (IP for real mode or EIP for protected mode).
• CS:EIP
• SS:ESP , SS:EBP
• DS:EAX , DS:EBX , DS:ECX , DS:EDX , DS:EDI , DS:ESI , DS:8-bit_literal , DS:32-bit_literal
• ES:EDI
• FS and GS have no default.



• It is illegal to place an offset larger than FFFF into the 80386 32-bit registers operating in Real Mode.

Real Mode Memory Addressing

• Segments and Offsets :

• Segmented addressing allows relocation of data and code.
• OS can assign the segment addresses at run time.

Memory Addressing

• Memory Paging:
• Available in the 80386 and up.
• Allows a linear address ( virtual address ) of a program to be located in any portion of physical memory.



• The paging unit is controlled by the microprocessors control registers:

Memory Addressing

• Memory Paging:
• The paging system operates in both real and protected mode.
• It is enabled by setting the PG bit to 1 (left most bit in CR0 ).
• (If set to 0, linear addresses are physical addresses).



• CR3 contains the page directory "physical" base address.



• The value in this register is one of the few "physical" addresses you will ever refer to in a running system.



• The page directory can reside at any 4K boundary since the low order 12 bits of the address are set to zero.



• The page directory contains 1024 directory entries of 4 bytes each.



• Each page directory entry addresses a page table that contains up to 1024 entries.

Memory Addressing

• Memory Paging:

• The virtual address is broken into three pieces:
• Directory : Each page directory addresses a 4MB section of main mem.
• Page Table : Each page table entry addresses a 4KB section of main mem.
• Offset : Specifies the byte in the page.

Memory Addressing

• Memory Paging:

Memory Addressing

• Memory Paging:
• The page directory is 4K bytes.
• Each page table is 4K bytes, and there are 1024 of them.
• If all 4GB of memory is paged, the overhead is 4MB!



• The current scheme requires three accesses to memory:
• One to the directory , one to the appropriate page table and (finally) one to the desired data or code item. Ouch!
• A Translation Look-aside Buffer ( TLB ) is used to cache page directory and page table entries to reduce the number of memory references.
• Plus the data cache is used to hold recently accessed memory blocks.
• System performance would be extremely bad without these features.
• Much more on this in OS (CMSC 421).



• Paging and Segmentation:
• These two addresses translation mechanism are typically combined.
• We'll look at this in later chapters.
•

Segmentation and the User Application

• The application programmer loads segment register values as before in Real Mode, but the values that he/she puts in them are very different.
• Since knowledge of the GDT and LDT is not generally available at compile time, the programmer must use symbolic names.
• The loader is responsible for resolving the actual values at run time.



• In general, the segment values are 16-bit tags for the address spaces of the program.
• Instructions such as LDS (load DS), LAR (load access rights), LSL (load segment limit), VERR (verify for read) are available to retrieve descriptor attributes, if the process is privileged enough.



• Whenever a segment register is changed, sanity checks are performed before the descriptor is cached.
• The index is checked against the limit.
• Other checks are made depending on the segment type, e.g., data segments, DS cannot be loaded with pointers to execute-only descriptors, ...
• The present flag is checked.
• Otherwise, an exception is raised and nothing changes.

Privilege Levels

• 0: highest privilege, 3: lowest privilege

• The privilege protection system plays a role for almost every instruction executed.



• Protection mechanisms check if the process is privileged enough to:
• Execute certain instructions , e.g., those that modify the Interrupt flag, alter the segmentation, or affect the protection mechanism require PL 0.
• Reference data other than its own . References to data at higher privilege levels is not permitted.
• Transfer control to code other than its own . CALLs or JMPs to code with a different privilege level (higher or lower) is not permitted.

Privilege Levels

• Privilege levels are assigned to segments , as we have seen, using the DPL (Descriptor Privilege Level) field (bits 45 and 46).
• Define CPL as the Code Privilege Level of the process, which is the DPL of its code segment !
• Define RPL as the Requestor's Privilege Level.



• Privilege Level Definitions:

• When data selectors are loaded, the corresponding data segment's DPL is compared to the larger of your CPL or the selector's RPL.
• Therefore, you can use RPL to weaken your current privilege level, if you want.

Privilege Levels

• CPL is defined by the descriptors, so access to them must be restricted.
• Privileged Instructions:
• Those that affect the segmentation and protection mechanisms (CPL=0 only).
• For example, LGDT, LTR, HLT.
• Those that alter the Interrupt flag (CPL <= IOPL field in EFLAGS).
• For example, CLI, STI (Note: only DPL 0 code can modify the IOPL fields.)
• Those that perform peripheral I/O (CPL <= IOPL field in EFLAGS).
• For example, IN, OUT.



• Privileged Data References:
• Two checks are made in this case:
• Trying to load the DS, ES, FS or GS register with a selector whose DPL is > the DPL of the code segment descriptor generates a general protection fault .
• Trying to use a data descriptor that has the proper privilege level can also be illegal, e.g. trying to write to a read-only segment.



• For SS , the rules are even more restrictive.

Privilege Levels

• Privileged Code References:
• Transferring control to code in another segment is performed using the FAR forms of JMP, CALL and RET.



• These differ from intra-segment (NEAR) transfers in that they change both CS and EIP.



• The following checks are performed:
• The new selector must be a code segment (e.g. with execute attribute).
• CPL is set to the DPL (RPL is of no use here).
• The segment is present.
• The EIP is within the limits defined by the segment descriptor.



• The RPL field is always set to the CPL of the process, independent of what was actually loaded.



• You can examine the RPL field of CS to determine your CPL.

Changing CPL

• There are two ways to change your CPL:
• Conforming Code segments .
• Remember Types 6 and 7 defined in the AR byte of descriptor?
• Segments defined this way have no privilege level -- they conform to the level of the calling program.
• This mechanism is well suited to handle programs that share code but run at different privilege levels, e.g., shared libraries.
• Through special segment descriptors called Call Gates .



• Call Gate descriptor:

• Call gates act as an interface layer between code segments at different privilege levels.
• They define entry points in more privileged code to which control can be transferred.

Call Gates

• They must be referred to using FAR CALL instructions (no JMPs are allowed).
• Note, references to call gates are indistinguishable from other FALL CALLs in the program -- a segment and offset are still both given.
• However, in this case, both are ignored and the call gate data is used instead.
• Call Gate Mechanism:

Call Gates

• Note that both the selector and offset are given in the call gate preventing lower privileged programs from jumping into the middle of higher privileged code.
• This mechanism makes the higher privileged code invisible to the caller.



• Call Gates have "tolls" as well, making some or all of them inaccessible to lower privileged processes.
• The rule is that the Call Gate's DPL field (bits 45-46) MUST be >= (lower in privilege) than the process's CPL before the call.



• Moreover, the privileged code segment's DPL field MUST be <= the process's CPL before the call.

Call Gates

• Changing privilege levels requires a change in the stack as well (otherwise, the protection mechanism would be sabotaged).
• Stack segment DPLs MUST match the CPL of the process.



• This happens transparently to the program code on both sides of the call gate!



• Where does the new stack come from?

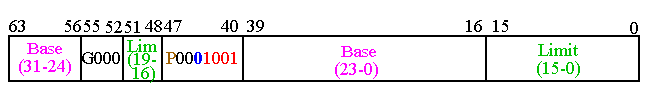

• From yet another descriptor, Task State Segment ( TSS ) descriptor, and a special segment, the TSS.



• The TSS stores the state of all tasks in the system and is described using a TSS descriptor.

• The processor saves all the information it needs to know about a task in the TSS.
• More on this later as time permits.

Memory Types

• Two basic types:
• ROM : Read-only memory
• RAM : Read-Write memory



• Four commonly used memories:
• ROM
• Flash (EEPROM)
• Static RAM (SRAM)
• Dynamic RAM (DRAM)



• Generic pin configuration:

Memory Chips

• The number of address pins is related to the number of memory locations .
• Common sizes today are 1K to 256M locations.
• Therefore, between 10 and 28 address pins are present.



• The data pins are typically bi-directional in read-write memories.
• The number of data pins is related to the size of the memory location .
• For example, an 8-bit wide (byte-wide) memory device has 8 data pins.
• Catalog listing of 1K X 8 indicate a byte addressable 8K memory.



• Each memory device has at least one chip select ( CS ) or chip enable ( CE ) or select ( S ) pin that enables the memory device.
• This enables read and/or write operations.
• If more than one are present, then all must be 0 in order to perform a read or write.

Memory Chips

• Each memory device has at least one control pin.
• For ROMs, an output enable ( OE ) or gate ( G ) is present.
• The OE pin enables and disables a set of tristate buffers.
• For RAMs, a read-write ( R/W ) or write enable ( WE ) and read enable (OE ) are present.
• For dual control pin devices, it must be hold true that both are not 0 at the same time.



• ROM:
• Non-volatile memory: Maintains its state when powered down.
• There are several forms:
• ROM : Factory programmed, cannot be changed. Older style.
• PROM : Programmable Read-Only Memory.
• Field programmable but only once. Older style.
• EPROM : Erasable Programmable Read-Only Memory.
• Reprogramming requires up to 20 minutes of high-intensity UV light exposure.

Memory Chips

• ROMs (cont):
• Flash EEPROM : Electrically Erasable Programmable ROM.
• Also called EAROM (Electrically Alterable ROM) and NOVRAM (NOn-Volatile RAM).
• Writing is much slower than a normal RAM.



• Used to store setup information, e.g. video card, on computer systems.
• Can be used to replace EPROM for BIOS memory.

EPROMs

• Intel 2716 EPROM (2K X 8):

EPROMs

• 2716 Timing diagram:

• Sample of the data sheet for the 2716 A.C. Characteristics.

Symbol	Parameter	Limits			Unit	Test Condition
		Min	Typ.	Max
tACC1	Addr. to Output Delay		250	450	ns	PD/PGM= CS =VIL
tOH	Addr. to Output Hold	0			ns	PD/PGM= CS =VIL
tDF	Chip Deselect to Output Float	0		100	ns	PD/PGM=VIL
...	...	...	...	...	...	...

• This EPROM requires a wait state for use with the 8086 ( 460ns constraint).

SRAMs

• TI TMS 4016 SRAM (2K X 8):

• Virtually identical to the EPROM with respect to the pinout.
• However, access time is faster (250ns).
• See the timing diagrams and data sheets in text.
• SRAMs used for caches have access times as low as 10ns .

DRAMs

• DRAM:
• SRAMs are limited in size (up to about 128K X 8).
• DRAMs are available in much larger sizes, e.g., 64M X 1.



• DRAMs MUST be refreshed (rewritten) every 2 to 4 ms
• Since they store their value on an integrated capacitor that loses charge over time.



• This refresh is performed by a special circuit in the DRAM which refreshes the entire memory using 256 reads.
• Refresh also occurs on a normal read, write or during a special refresh cycle.
• More on this later.



• The large storage capacity of DRAMs make it impractical to add the required number of address pins.
• Instead, the address pins are multiplexed .

DRAMs

• TI TMS4464 DRAM (64K X 4):

• The TMS4464 can store a total of 256K bits of data.



• It has 64K addressable locations which means it needs 16 address inputs, but it has only 8 .
• The row address (A ₀ through A ₇ ) are placed on the address pins and strobed into a set of internal latches.
• The column addres (A ₈ through A ₁₅ ) is then strobed in using CAS.

DRAMs

• TI TMS4464 DRAM (64K X 4) Timing Diagram:

• CAS also performs the function of the chip select input.

DRAMs

• Larger DRAMs are available which are organized as 1M X 1 , 4M X 1 , 16M X 1 , 64M X 1 (with 256M X 1 available soon).
• DRAMs are typically placed on SIMM (Single In-line Memory Modules) boards.
• 30-pin SIMMs come in 1M X 8 , 1M X 9 (parity), 4M X 8 , 4M X 9 .
• 72-pin SIMMs come in 1 / 2 / 3 / 8 / 16M X 32 or 1M X 36 (parity).

DRAMs

• Pentiums have a 64-bit wide data bus.
• The 30-pin and 72-pin SIMMs are not used on these systems.
• Rather, 64-bit DIMMs ( Dual In-line Memory Modules) are the standard.
• These organize the memory 64-bits wide.
• The board has DRAMs mounted on both sides and is 168 pins.



• Sizes include 2M X 64 ( 16M ), 4M X 64 ( 32M ), 8M X 64 ( 64M ) and 16M X 64 ( 128M ).



• The DIMM module is available in DRAM , EDO and SDRAM (and NVRAM ) with and without an EPROM.



• The EPROM provides information abou the size and speed of the memory device for PNP applications.

Memory Address Decoding

• The processor can usually address a memory space that is much larger than the memory space covered by an individual memory chip.



• In order to splice a memory device into the address space of the processor, decoding is necessary.



• For example, the 8088 issues 20-bit addresses for a total of 1MB of memory address space.

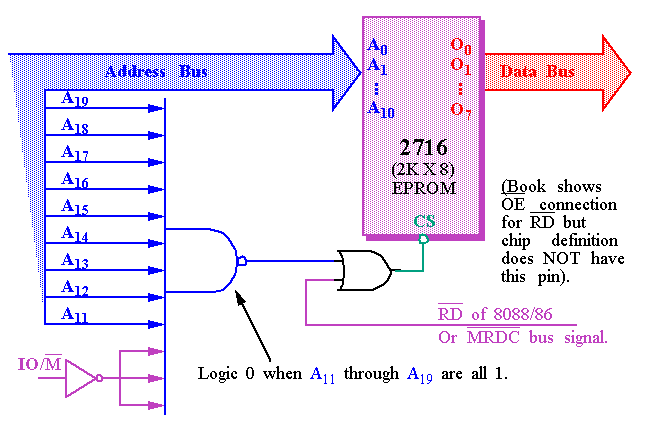

• However, the BIOS on a 2716 EPROM has only 2KB of memory and 11 address pins.



• A decoder can be used to decode the additional 9 address pins and allow the EPROM to be placed in any 2KB section of the 1MB address space.

Memory Address Decoding

Memory Address Decoding

• To determine the address range that a device is mapped into:



• This 2KB memory segment maps into the reset location of the 8086/8088 (FFFF0H).



• NAND gate decoders are not often used.
• Rather the 3-to-8 Line Decoder (74LS138) is more common.

Memory Address Decoding

• The 3-to-8 Line Decoder (74LS138)

• Note that all three Enables (G2A, G2B, and G1) must be active, e.g. low, low and high, respectively.
• Each output of the decoder can be attached to an 2764 EPROM ( 8K X 8 ).

Memory Address Decoding

• The EPROMs cover a 64KB section of memory.

Memory Address Decoding

• Yet a third possibility is a PLD (Programmable Logic Device).
• PLDs come in three varieties:
• PLA (Programmable Logic Array)
• PAL (Programmable Array Logic)
• GAL (Gated Array Logic)



• PLDs have been around since the mid-1970s but have only recently appeared in memory systems (PALs have replaced PROM address decoders).



• PALs and PLAs are fuse-programmed (like the PROM).
• Some are erasable (like the EPROM).



• A PAL example (16L8) is shown in the text and is commonly used to decode the memory address, particularly for 32-bit addresses generated by the 80386DX and above.

Memory Address Decoding

• AMD 16L8 PAL decoder.
• It has 10 fixed inputs (Pins 1-9, 11), two fixed outputs (Pins 12 and 19) and 6 pins that can be either (Pins 13-18).

• AND/NOR device with logic expressions (outputs) with up to 16 ANDed inputs and 7 ORed product terms.

8088 and 80188 (8-bit) Memory Interface

• The memory systems "sees" the 8088 as a device with:
• 20 address connections (A19 to A0).
• 8 data bus connections (AD7 to AD0).
• 3 control signals, IO/M, RD, and WR.



• We'll look at interfacing the 8088 with:
• 32K of EPROM (at addresses F8000H through FFFFFH).
• 512K of SRAM (at addresses 00000H through 7FFFFH).



• The EPROM interface uses a 74LS138 (3-to-8 line decoder) plus 8 2732 ( 4K X 8 ) EPROMs.



• The EPROM will also require the generation of a wait state.
• The EPROM has an access time of 450ns .
• The 74LS138 requires 12ns to decode.
• The 8088 runs at 5MHz and only allows 460ns for memory to access data.
• A wait state adds 200ns of additional time.

8088 and 80188 (8-bit) EPROM Memory Interface

• The 8088 cold starts execution at FFFF0H . JMP to F8000H occurs here.

8088 and 80188 (8-bit) RAM Memory Interface

8088 and 80188 (8-bit) RAM Memory Interface

• The 16 62256s on the previous slide are actually SRAMs.
• Access times are on order of 10ns .



• Flash memory can also be interfaced to the 8088 (see text).
• However, the write time ( 400ms !) is too slow to be used as RAM (as shown in the text).



• Parity Checking:
• Parity checking is used to detect single bit errors in the memory.



• The current trend is away from parity checking.



• Parity checking adds 1 bit for every 8 data bits.
• For EVEN parity, the 9th bit is set to yield an even number of 1's in all 9 bits.
• For ODD parity, the 9th bit is set to make this number odd.



• For 72-pin SIMMs, the number of data bits is 32 + 4 = 36 ( 4 parity bits).

Parity for Memory Error Detection

• 74AS280 Parity Generator/Checker

• This circuit generates EVEN or ODD parity for the 9-bit number placed on its inputs.
• Typically, for generation, the 9th input bit is set to 0.



• This circuit also checks EVEN or ODD parity for the 9-bit number.
• In this case, the 9th input bit is connected to the 9th bit of memory.
• For example, if the original byte has an even # of 1's (with 9th bit at GND), the parity bit is set to 1 (from the EVEN output).
• If the EVEN output goes high during the check, then an error occurred.

Parity for Memory Error Detection

Error Detection

• This parity scheme can only detect a single bit error.
• Block-Check Character ( BCC ) or Checksum.
• Can detect multiple bit errors.
• This is simply the two's complement sum (the negative of the sum) of the sequence of bytes.
• No error occurred if adding the data values and the checksum produces a 0.
• For example:

• This is not fool proof.
• If 45 changes to 44 AND 04 changes to 05, the error is missed.

Error Detection

• Cyclic Redundancy Check ( CRC ).
• Commonly used to check data transfers in hardware such as harddrives.
• Treats data as a stream of serial data n-bits long.
• The bits are treated as coefficients of a characteristic polynomial , M(X) of the form:

Error Detection

• Cyclic Redundancy Check ( CRC ) (cont.)
• The CRC is found by applying the following equation.

• G(X) is the called the generator polynomial and has special properties.
• A commonly used polynomial is:



• The remainder R(X) is appended to the data block.
• When the CRC and R(X) is computed by the receiver, R(X) should be zero.
• Since G(X) is of power 16, the remainder, R(X) , cannot be of order higher than 15.
• Therefore, no more than 2 bytes are needed independent of the data block size.

Error Detection

• Cyclic Redundancy Check ( CRC )(cont.)

Error Correction

• Parity , BCC and CRC are only mechanisms for error detection.
• The system is halted if an error is found in memory.



• Error correction is starting to show up in new systems.
• SDRAM has ECC (Error Correction Code).



• Correction will allow the system can continue operating.
• If two errors occur, they can be detected but not corrected .
• Error correction will of course cost more in terms of extra bits.



• Error correction is based on Hamming Codes .
• There is lots of theory here but our focus will be on implementation.
• The objective is to correct any single bit errors in an 8-bit data byte.

• In other words, we need 4 parity bits to correct single bit errors.
• Note that the parity bits are at bit positions that are powers of 2 .

Error Correction

• Hamming Codes (cont).
• P1 is generated by computing the parity of X ₃ , X ₅ , X ₇ , X ₉ , X ₁₁ , X ₁₃ , X ₁₅ .
• These numbers have a 1 in bit position 1 of the subscript in binary.

Error Correction

• Hamming Codes (cont).

Parity for Memory Error Correction

• The 74LS636 corrects errors by storing 5 parity bits with each byte of data.
• The pinout consists of:
• 8 data I/O pins
• 5 check bit I/O pins
• 2 control pins
• 2 error outputs
• Single error flag ( SEF )
• Double error flag ( DEF ).

• See the text for an example of its use in a circuit.

  Очень полезная информация. Спасибо.
2009-05-12 21:38:53

  Ценный конспект. Но, увы, Intel назначил уровни привилегий по убывающей,
чтобы всех запутать. И здесь та же двусмысленность.
"Привилегии выше" -- это понятно. "Уровень привилегий выше" -- начинаются сомнения:
может, речь о том, что число больше (тогда это низшая привилегия).
2022-06-06 19:49:45
